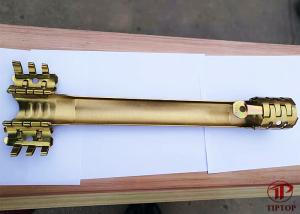

Customized ESP Cable Protectors 16-19mm
ESP cable protector, also called a control line protector for protecting ESP cables, control lines and any configuration package harness wellbore. When cables or pipelines across the tubing joints, some channels may be shielded cable or line, in order to prevent damage to the cable or pipeline during installation or retrieval completion.
ESP cable protector made of carbon steel or stainless steel for 2-7 / 8 "to 7" OD pipe. Control circuit adapted to protect the flat, square and round cables and lines.
Applications:
ESP cable
Downhole ety valve control pipeline
Chemical injection line
Coiled tube
Permanent gauge
Smart well
optical fiber
| NO. | Description | Tube size | Cable type | Cable size |
| 1 | Cable Protector 2-3/8R6-8 | 2-3/8" | Round | Φ6-8mm |
| 2 | Cable Protector 2-3/8F11/34 | 2-3/8" | Flat | 11mm SQUARE |
| 3 | Cable Protector 2-3/8R32-34 | 2-3/8" | Round | Φ32-34mm |
| 4 | Cable Protector 2-7/8R6-8 | 2-7/8" | Round | Φ6-8mm |
| 5 | Cable Protector 2-7/8R30-33 | 2-7/8" | Round | Φ30-33mm |
| 6 | Cable Protector 2-7/8R34-37 | 2-7/8" | Round | Φ34-37mm |
| 7 | Cable Protector 2-7/8F11/34 | 2-7/8" | Flat | 11mm SQUARE |
| 8 | Cable Protector 2-7/8F16-19/56 | 2-7/8" | Flat | 16-19mm SQUARE |
| 9 | Cable Protector 2-7/8F16-19/70 | 2-7/8" | Flat | 16-19mm SQUARE |
| 10 | Cable Protector 3-1/2R6-8 | 3-1/2" | Round | Φ6-8mm |
| 11 | Cable Protector 3-1/2R30-33 | 3-1/2" | Round | Φ30-33mm |
| 12 | Cable Protector 3-1/2R34-37 | 3-1/2" | Round | Φ34-37mm |
| 13 | Cable Protector 3-1/2R38-42 | 3-1/2" | Round | Φ38-42mm |
| 14 | Cable Protector 3-1/2F11/34 | 3-1/2" | Flat | 11mm SQUARE |
| 15 | Cable Protector 3-1/2F16-19/60 | 3-1/2" | Flat | 16-19mm SQUARE |
| 16 | Cable Protector 3-1/2F19-23/70 | 3-1/2" | Flat | 19--23mm SQUARE |
| 17 | Cable Protector 4-1/2R6-8 | 4-1/2" | Round | Φ6-8mm |
| 18 | Cable Protector 4-1/2R34-37 | 4-1/2" | Round | Φ34-37mm |
| 19 | Cable Protector 4-1/2R38-42 | 4-1/2" | Round | Φ38-42mm |
| 20 | Cable Protector 4-1/2F11/34 | 4-1/2" | Flat | 11mm SQUARE |
| 21 | Cable Protector 4-1/2F16-19/60 | 4-1/2" | Flat | 16-19mm SQUARE |
| 22 | Cable Protector 4-1/2F19-23/60 | 4-1/2" | Flat | 19--23mm SQUARE |
| 23 | Cable Protector 5-1/2R6-8 | 5-1/2" | Round | Φ6-8mm |
| 24 | Cable Protector 5-1/2R34-37 | 5-1/2" | Round | Φ34-37mm |
| 25 | Cable Protector 5-1/2R38-42 | 5-1/2" | Round | Φ38-42mm |
| 26 | Cable Protector 5-1/2F11/34 | 5-1/2" | Flat | 11mm SQUARE |
| 27 | Cable Protector 5-1/2F11-16/56 | 5-1/2" | Flat | 11-16mm SQUARE |
| 28 | Cable Protector 5-1/2F16-19/70DUAL | 5-1/2" | Flat | 19--23mm SQUARE |
| 29 | Cable Protector 7R6-8 | 7" | Round | Φ6-8mm |
| 30 | Cable Protector 7F11/34 | 7" | Flat | 11mm SQUARE |
Note: We can provide specific design to meet strict technological and quality.
FAQ
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A: Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
